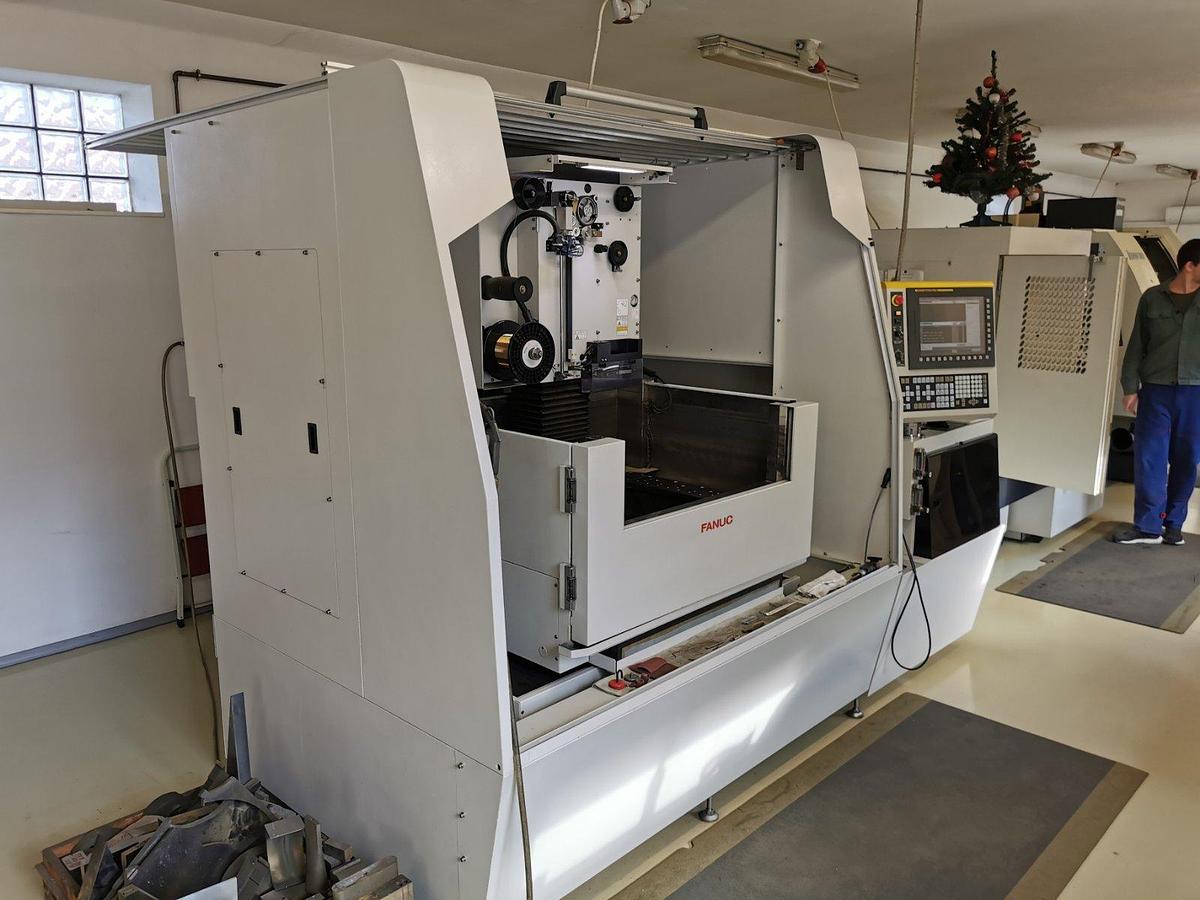

FANUC Robocut Alpha 1D wire spark

Description Vintage 2007 Condition spared, maintained condition Description Can not be viewed in Hungary Description Control Fanuc Series 310is WA (15 inch screen, 2 x USB) Max workpiece size 1050 x 820 x 300 mm Max workpiece weight on the table 1000 kg X movement 600 mm Y movement 400 mm Z movement 310 mm U movement 200 mm V movement 200 mm High speed 900 mm / min (X / Y / Z axes) High speed 450 mm / min (U / V axes) Wire diameter D0.1 - 0.3 mm Max conical cutting +/- 30 degrees / 150 mm Max conical cut +/- 45 degrees / 70 mm Power supply 13 kVA Dimensions L x W x H = 2440 x 2930 x 2160 mm Machine weight approx. 3000 kg Accessories, features Underwater cutting Complete cladding system Electric handwheel Cooling water system Wire collector Transformer Manuals
