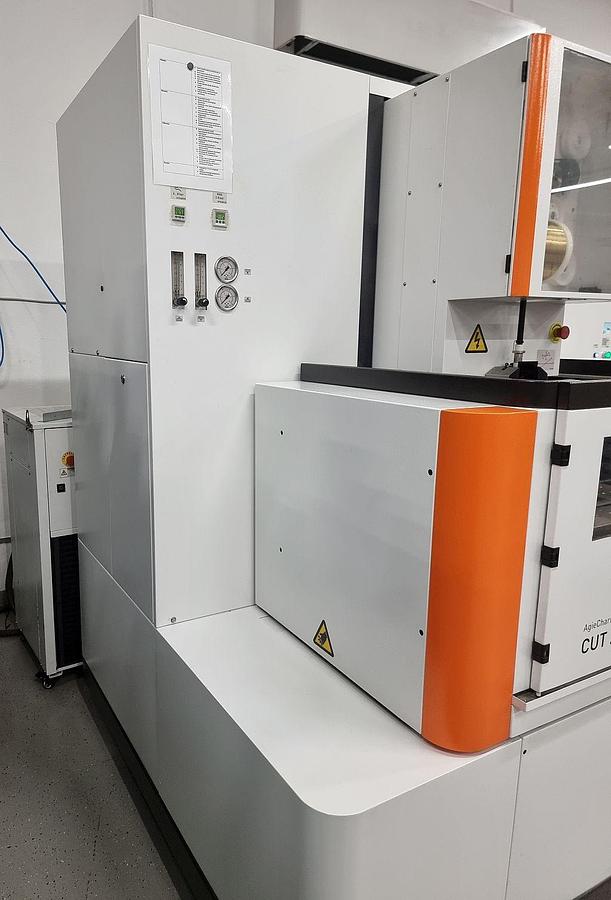

2017 AGIE Charmilles Cut P20 wire-cutting machine

2017 AGIE Charmilles Cut P20 wire-cutting machine
Location:Székesfehérvár, Hungary
or
Call +36 307 572 437
Description
For sale 2 pieces, high quality, very little used, modern AGIECHARMILLES CUT 20P wire cutting machine. The machines can be purchased immediately. Under power viewing in Hungary.
Year: 2017
Condition like new, ready for immediate use
Other: 2 identical machines, viewable under power in Hungary
Description
Controller AGIE (Intel Pentium, WINDOWS-based, 17" monitor, USB)

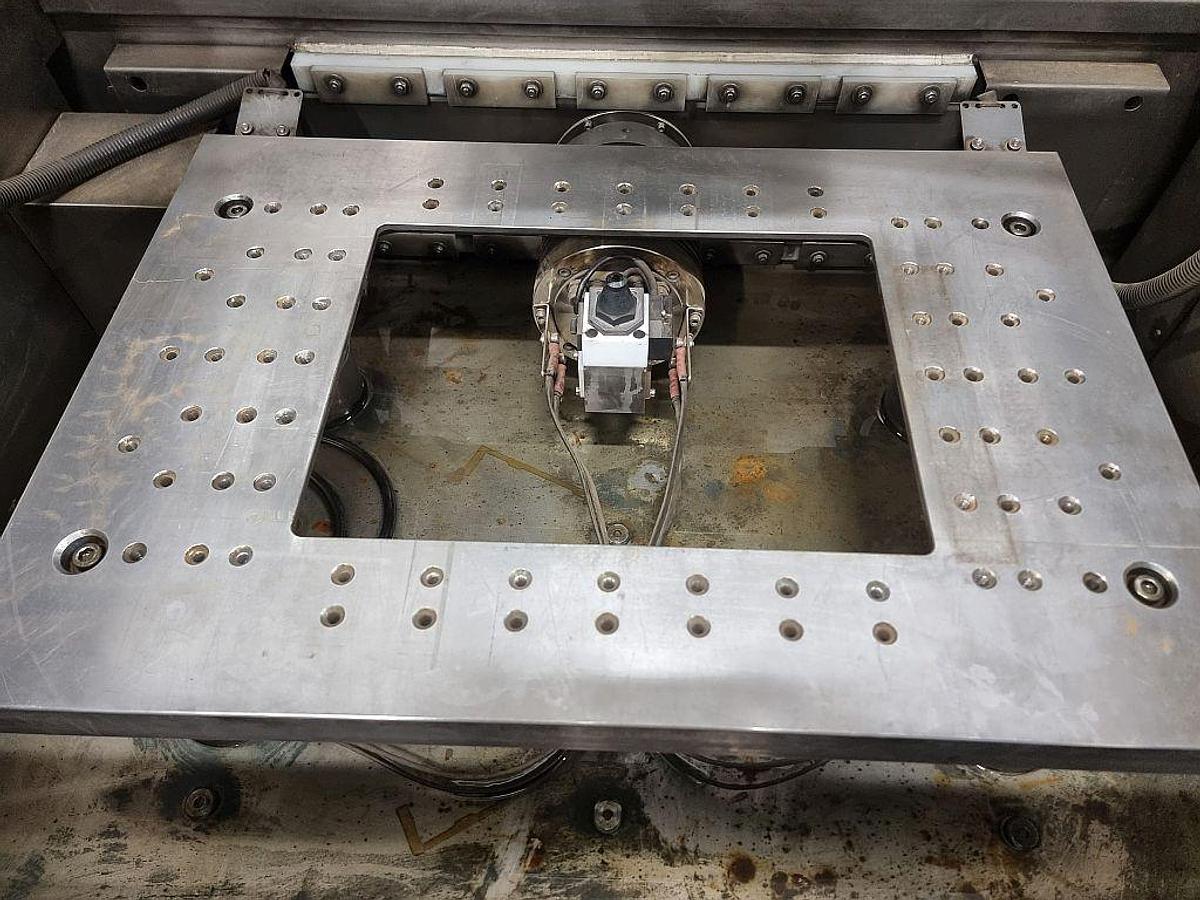

Table size 700 x 480 mm
X travel 350 mm
Y travel 250 mm
Z travel 250 mm
U/V cutting +/-45 mm
Max. conical cutting +/-10 degrees
Max. workpiece dimensions 820 x 680 x 250 mm
Max. workpiece weight 400 kg

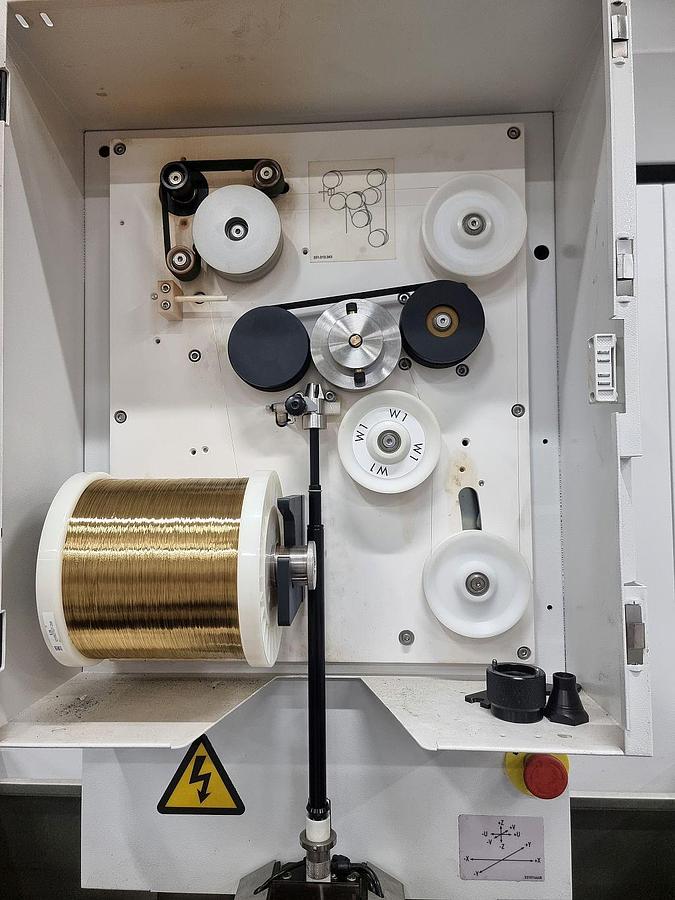

Wire speed 3 – 330 mm/s
Power supply 3 x 400V, 8 kVA
Machine dimensions H x W x D = 2500 x 2500 x 2200 mm
Machine weight approx. 2640 kg
Accessories
Coolant unit
Machine documentation

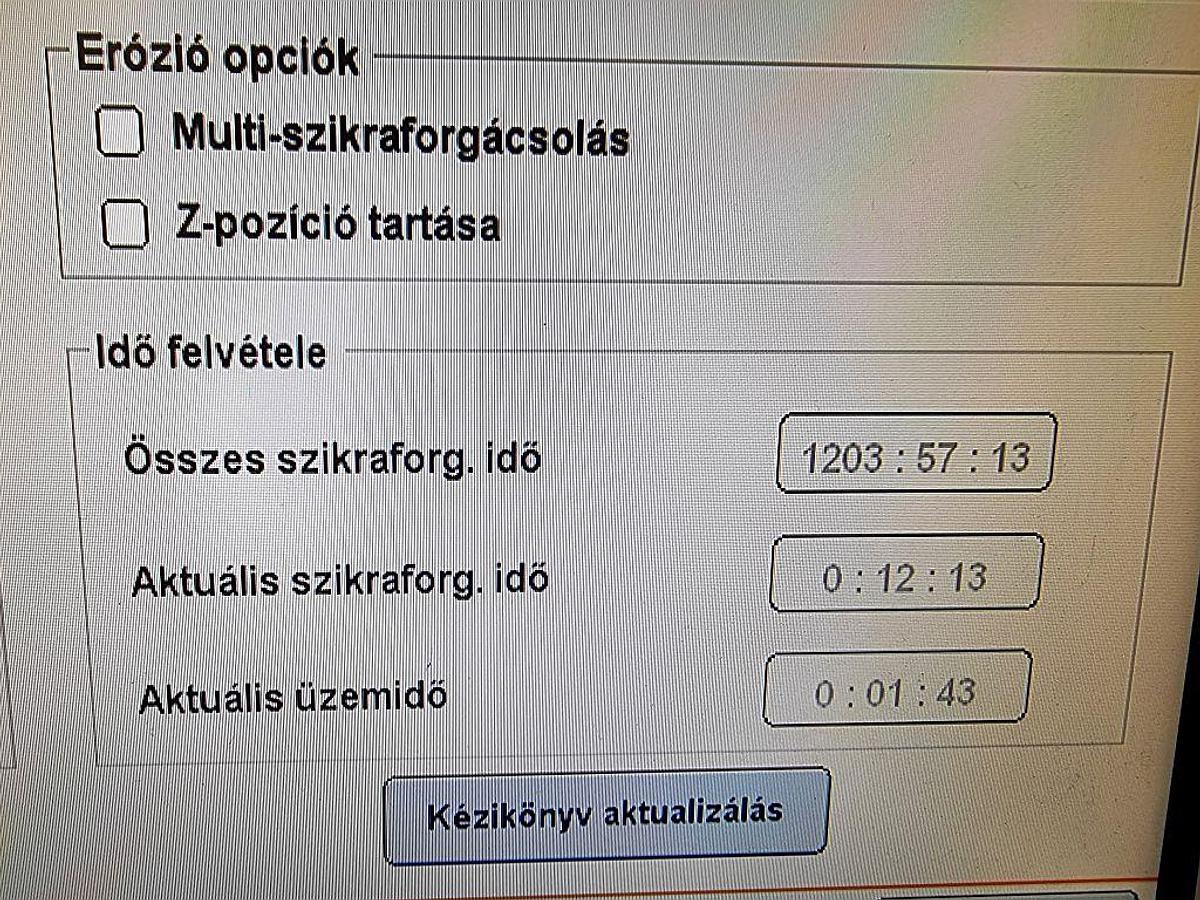

Very low running hours. Two almost identical machines are being sold. The machines are in like-new condition.
Specifications
| Year | 2017 |
| Condition | Used |
| Stock Number | 11921 |
