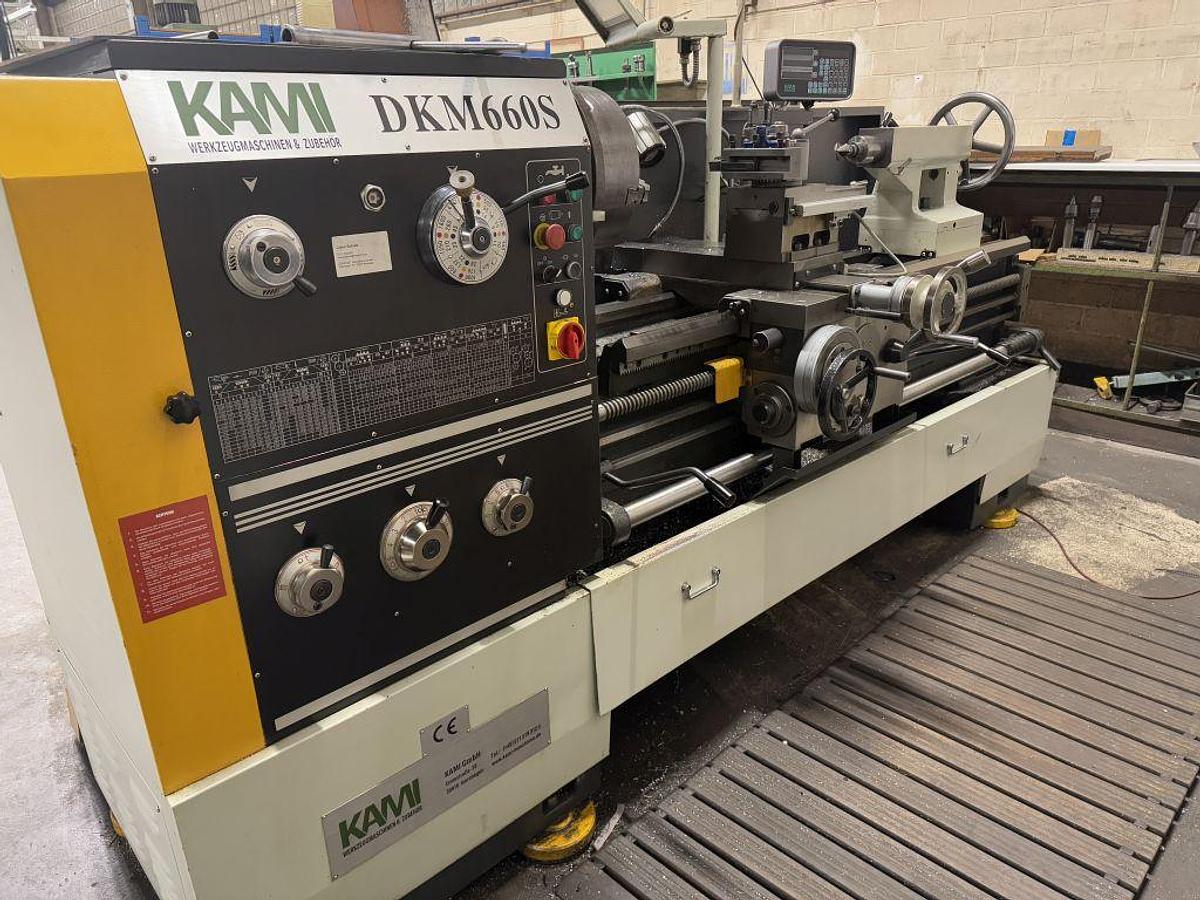

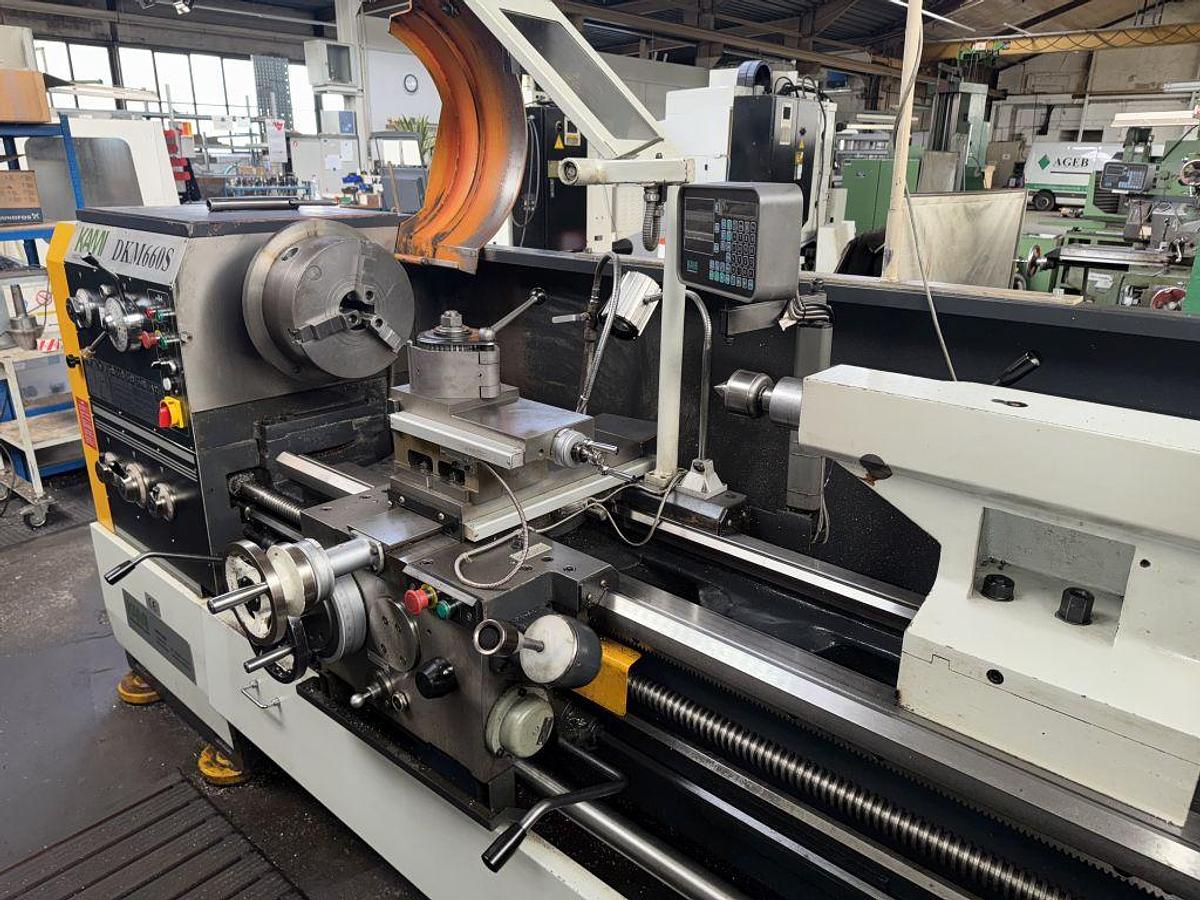

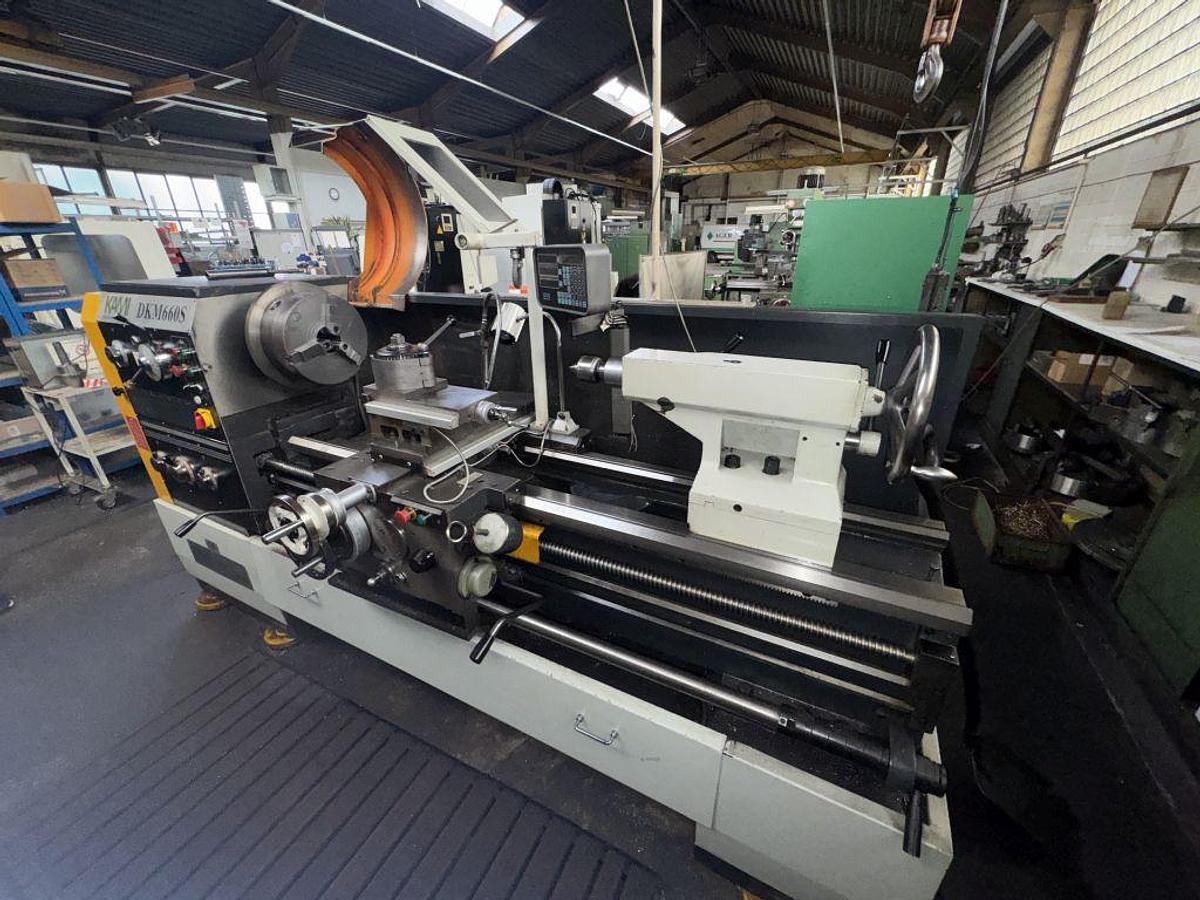

KAMI DKM660Sx1500 lathe

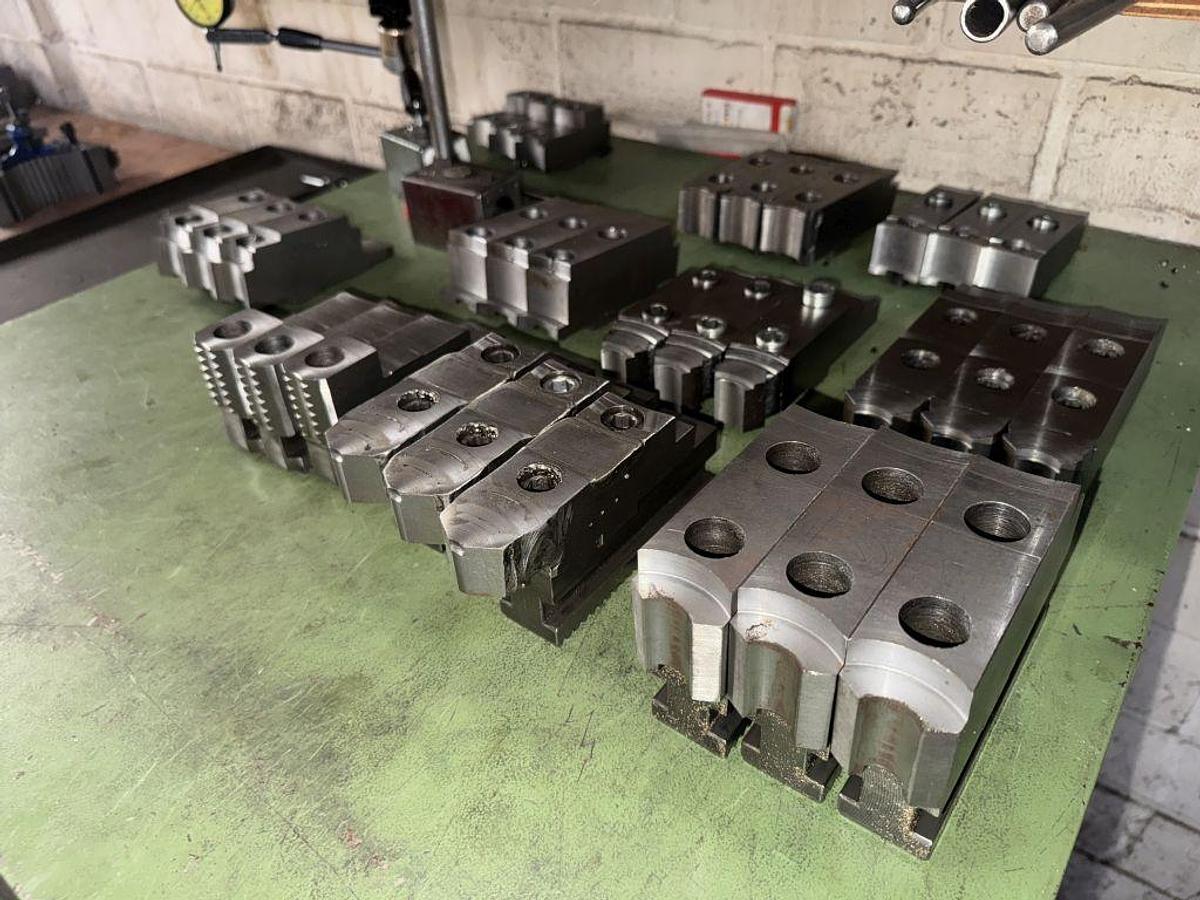

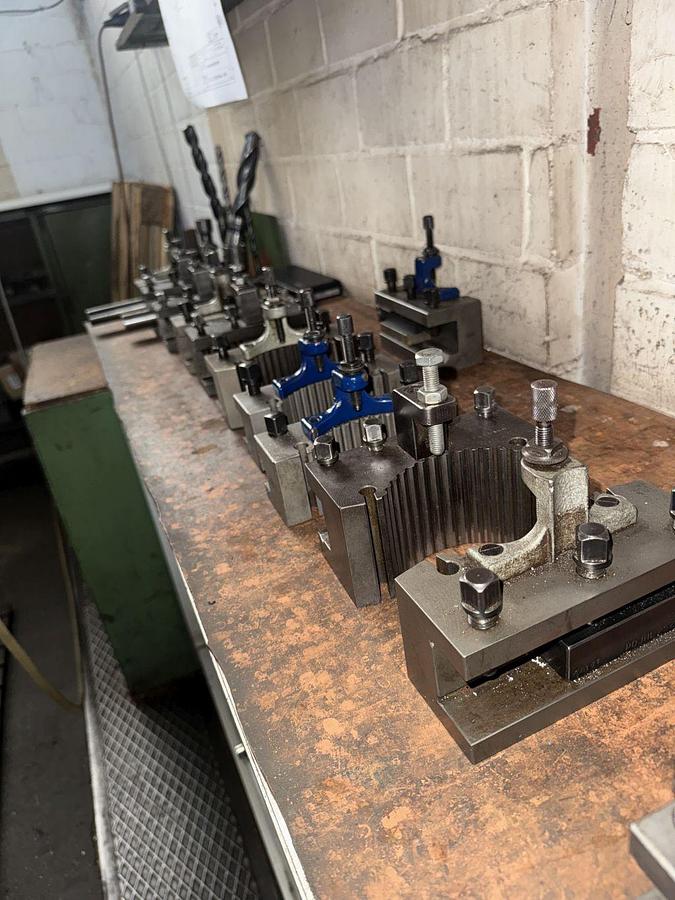

for sale a new, warehouse-condition DKM660x1500 robust precision engine lathe machine. With chucks, test indicator, MULTIFIX tool holder. Year of manufacture Factory new Condition Factory as new Other Viewable in Iszaszentgyörgy Description Centre distance 1500 mm Centre height 330 mm Over-bed turning diameter 660 mm Over-cross-slide turning diameter 420 mm In the saddle bridge turning diameter 870 mm Spindle bore 103 mm Facing lengths – cross 0.028 – 6.43 / 0.012 – 2.73 mm/rev Spindle speed infinitely adjustable 36 – 1600 RPM (12 steps) Thread cutting, metric 48 x 0.5 – 224 Threads Whitworth 72 x 1/8 TPI Rapid traverse 1.5 / 1.9 m/min Main drive power 7.5 kW Lathe tailstock MK5 Tailstock travel 150 mm Footprint (m) 3.200 x 1.050 x 1.450 m Machine weight 3200 kg Accessories 3-jaw digital test indicator 3-jaw chuck (315-series) 4-jaw faceplate (500-series) 4-tool live-tool holder Halogen lamp Chip tray Coolant system Splash protection enclosure Standards and travelling blocks 120 – 250 mm range Fixed and rotating centres Hungarian-language operating manual
